HDO3PA3
Wenglor SKU 202605221148137

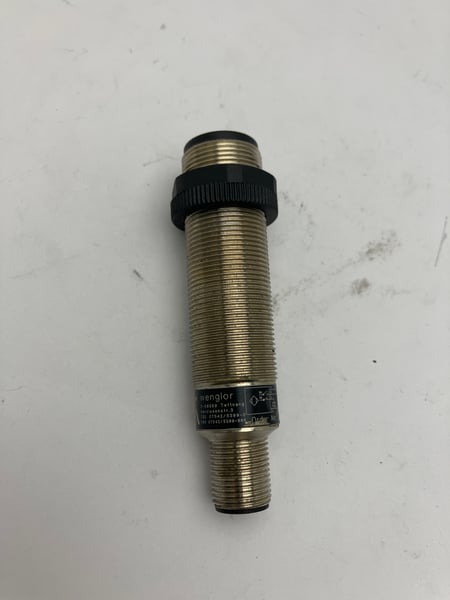

HDO3PA3 Wenglor Reflex Sensor Energetic

Original part # HDO3PA3
Brand Wenglor
Dimensions 8 × 3 × 3 cm, 0,048 kg
Last item in stock The Netherlands (EU) Ships from The Netherlands (EU)
PDF
Share: Email
Available versions & condition
Version Condition Qty
Standard New 1x
Description

Range 30 mm
Switching Hysteresis < 15 %
Light Source Infrared Light
Service Life (T = +25 °C) 100,000 h
Max. Ambient Light 10,000 Lux
Opening Angle 12 °

Electrical Data
Supply Voltage 10 ... 30 V DC
Current Consumption (Ub = 24 V) < 40 mA
Switching Frequency 1,500 Hz
Response Time 330 µs
Temperature Drift < 10 %
Temperature Range -25 ... 60 °C
Switching Output Voltage Drop < 2.5 V
PNP Switching Output/Switching Current 200 mA
Residual Current Switching Output < 50 µA
