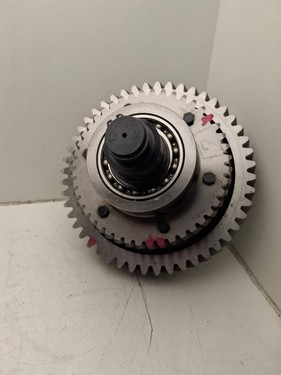

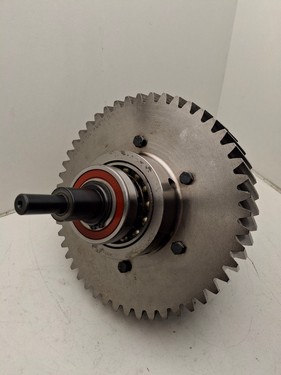

WM.83052-L97 - manroland PINION PHASE SHIFT KNIFE assembly
Front page / Search / manroland / WM.83052-L97
- Technical details
- manroland
- WM.83052-L97
- Used (1)
- -
- 202512111503219
- Last available item
- Please contact us
- Description
- WM.T27985 – Phase control shaft knife-W
WM.Z27189 – Key, form A, 1 slot, 12H7 x 8H11 x 55 (0–0.2)
WM.Z47485 – Key, form B, 5H9 x 5H9 x 10 (0–0.2)
WM.Z21065 – Single-row bearing SKF 6208-RS1
WM.Z37141 – Bearing spacer
WM.S24398 – Inner wheel phase-shift knife W1
WM.Z28897 – Single-row bearing SKF 6012
WM.T15178 – Harmonic drive
WM.T26996 – Inner wheel phase-shift knife W2
WM.C35515 – Single-row bearing SKF 6207
WM.X79459 – Chain sprocket, 20 teeth
WM.X70252 – Irreversible mechanism ref. 6420016140
WM.X78872 – Cover
WM.Z47487 – Pin
WM.T27109 – Shaft bearing phase-shift knife W
WM.P245130 – Machined cup washer
Any prices given are ex Works, as is and subject to continued availability of the parts. Our newsletter is sent out a few times per year.; you will not be receiving daily e-mails from us.
Additional details:
| Dimensions: | 37 x 27 x 27 cm |
| Weight: | 29.71 kg |
| Country of Origin: | DE |
| Warehouse: | SA15-060-10 (U/1/1/1)
|
| Dimensions and weight are an indication only, used for calculating shipment. If you wish to confirm the exact dimensions of the part, please contact us. | |
